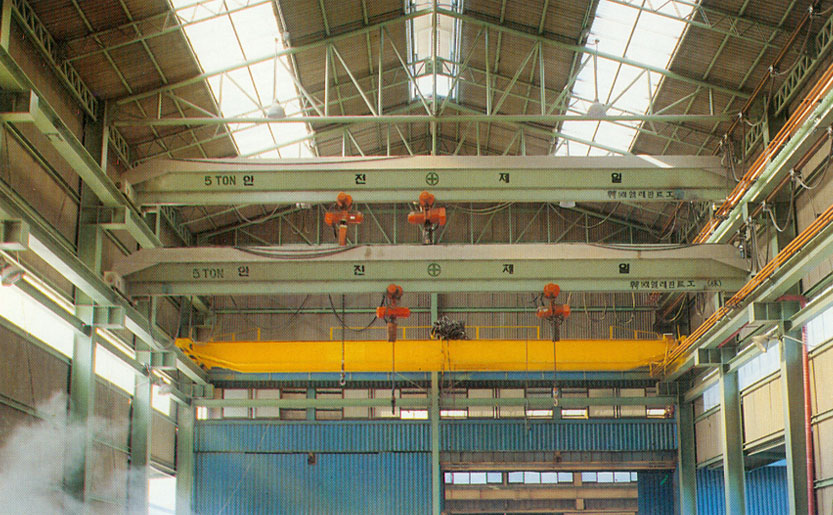

| HOIST CRANE - MONO RAIL TYPE |
 |
| |

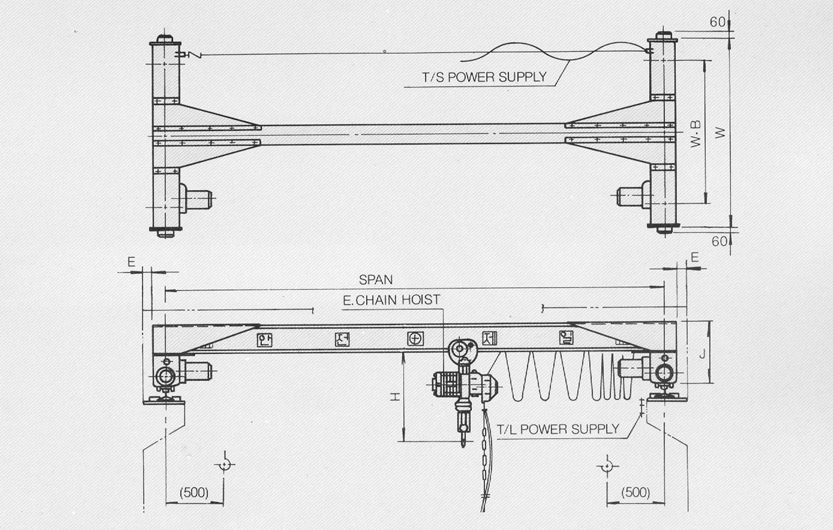

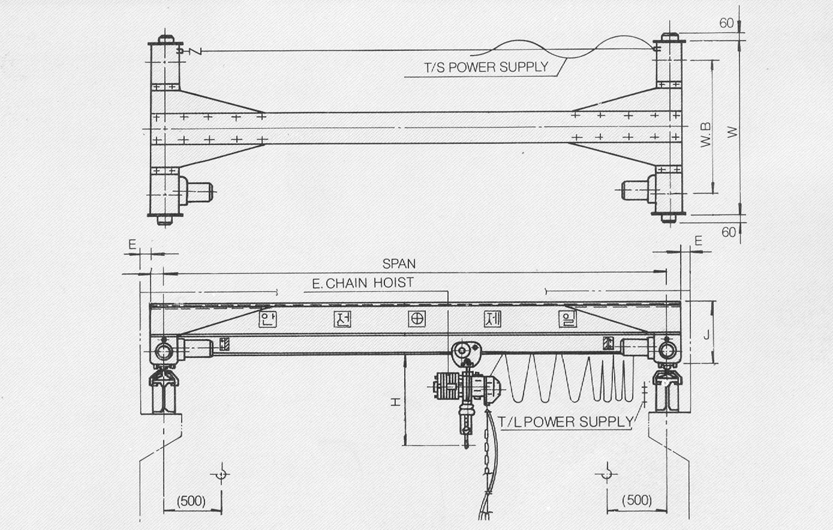

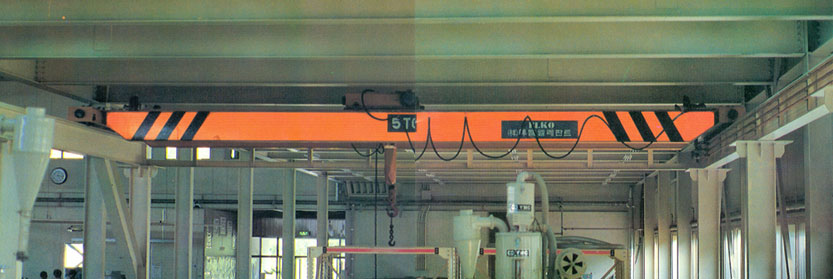

| Single Girder with Mono-Rail Hoist |
| Model |
Capa
-city
(ton) |
Max.
span
(m) |
Lift
L
(m) |
Speed/Motor
(m/min) (Kw) |
Approx. Dimension(mm) |
Trave-
lling
Wheel
(mmφ) |
Runway
Rail
(kg/m) |
Hoist-
ing |
Traver-
sing |
Traver-
eling |
H |
W |
W.B |
E |
J |
| HCMR-M |
0.5 |
10 |
4 |
8.6/0.9 |
20/0.4
or
24/0.75 |
16/0.4 x
2 or
32/1.5 x
2 |
575 |
2000 |
1500 |
50 |
565 |
160 |
15 |
| HCMR-SM-1 |
15 |
2500 |
2000 |
585 |
| HCMR-SM-2 |
20 |
3000 |
2500 |
| HCMR-SM-3 |
25 |
4000 |
3500 |
905 |
| HCMR-CM |
1 |
10 |
8.2/1.5 |
635 |
2000 |
1500 |
565 |
| HCMR-SM-1 |
15 |
3000 |
2500 |
585 |
| HCMR-SM-2 |
20 |
3500 |
3000 |
| HCMR-SM-3 |
25 |
4000 |
3500 |
905 |
| HCMR-M |
2 |
10 |
8.1/3.0 |
750 |
2000 |
1500 |
585 |
200 |
15
22 |
| HCMR-SM-2 |
15 |
3000 |
2500 |
| HCMR-SM-3 |
20 |
3500 |
3000 |
905 |
| HCMR-SM-2 |
3 |
10 |
5.15/3.0 |
990 |
2500 |
2000 |
585 |
| HCMR-SM-3 |
15 |
16/0.75 x
2 or
32/1.5 x
2 |
3500 |
3000 |
905 |
| HCMR-SM-2 |
5 |
10 |
3.25/3.0 |
20/0.75 |
1060 |
585 |
250 |
22
30
37 |
| HCMR-SM-3 |
15 |
905 |
|
| |
| HCMR-M |
|
| |
| HCMR-SM |
|
| |
| HOIST CRANE - DOUBLE RAIL TYPE |
 |
| |

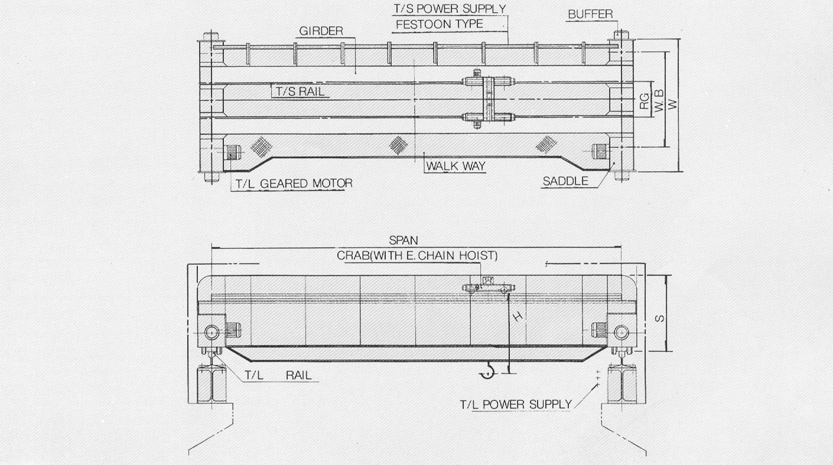

| Double Girder with Double-Rail Hoist |
| Model |
Capa
-city
(ton) |
Max.
span
(m) |
Lift
L
(m) |
Speed/Motor
(m/min) (Kw) |
Approx. Dimension(mm) |
Trave-
lling
Wheel
(mmφ) |
Runway
Rail
(kg/m) |
Hoist-
ing |
Traver-
sing |
Traver-
ling |
S |
W |
W.B |
H |
RG |
| HCDR-10 |
3 |
17.5 |
12 |
5.15/3 |
20/0.75 |
20
30 |
990 |
3320 |
2500 |
550 |
950 |
250 |
22
30 |
| HCDR-20 |
22.5 |
4320 |
3500 |
| HCDR-30 |
30 |
5320 |
4500 |
| HCDR-40 |
5 |
15 |
3.25/3 |
20/0.75 |
1095 |
3320 |
2500 |
680 |
1150 |
| HCDR-50 |
22.5 |
4320 |
3500 |
| HCDR-60 |
30 |
5200 |
4000 |
350 |
| HCDR-70 |
10 |
15 |
3.2/3 |
20/0.75x2 |
1215 |
3720 |
3000 |
765 |
30/37 |
| HCDR-80 |
25 |
4700 |
3500 |
400 |
| HCDR-90 |
30 |
6400 |
5000 |
|
| |
|
| |
