Hoist Crane Electric Over Head Crane Suspension Crane Gantry Crane Jib Crane

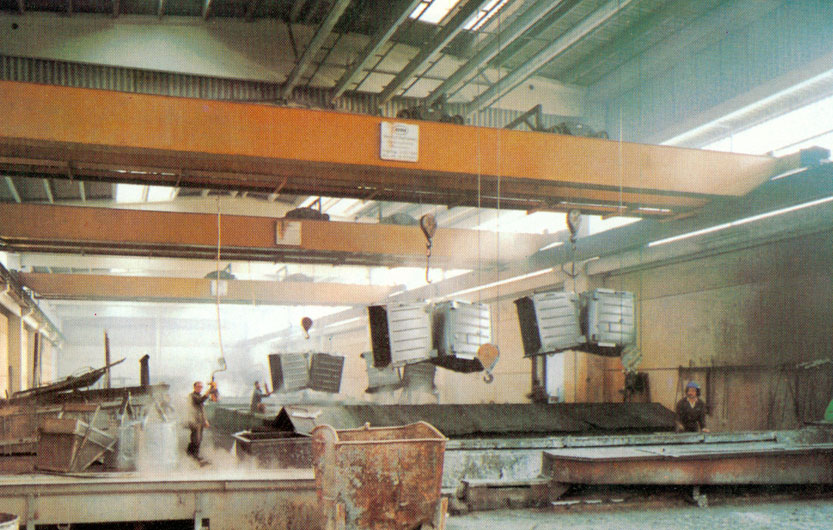

ELECTRIC OVER HEAD CRANE

Type Capacity
(ton)		 Span
(m)		 Lift
(m)		 Main
Hoist		 Aux.
Hoist		 Traver-
sing		 Traver-
ling		 Construction
Gauge(mm)
Main
Hoist		 Aux.
Hoist		 Speed/
Motor
(m/min)
(Kw)		 Speed/
Motor
(m/min)
(Kw)		 Speed/
Motor
(m/min)
(Kw)		 Speed/
Motor
(m/min)
(Kw)		 A B C
Medium
Speed
Type		 3 - 6-14 12.5 13/11 - 40/2.2 110/7.5 2400 350 1200
15-24 90/7.5 2500 1300
5 - 6-14 12.5 12/15 - 40/2.2 110/11 2400 350 1300
15-24 90/11 2500 1400
7.5 - 8-14 12.5 10/22 - 40/3.7 110/15 2400 350 1450
15-24 90/15 2500 1550
10 - 8-14 12.5 8/22 - 40/3.7 110/15 2500 350 1500
15-24 90/15 2600 1600
15 3 8-14 10 or 15 8/30 13/11 40/5.5 100/15 2600 370 1700
15-24 80/15 2700 1800
20 5 10-16 10 or 15 6/30 12/15 35/5.5 100/22 2700 400 1800
17-26 80/22 2800 1900
25 5 10-16 10 or 15 6/37 12/15 35/7.5 100/30 2800 400 1900
17-26 80/30 2900 2000
30 5 10-16 10 or 15 5/37 12/15 35/7.5 100/30 2900 400 2000
17-26 80/30 3000 2100
40 10 10-16 10 or 15 5/50 8/22 35/11 100/37 3100 400 2150
17-26 80/37 3200 2250
50 10 12-18 10 or 15 4/50 8/22 30/11 90/37 3300 400 2350
19-26 70/37 3400 380 2450
60 10 12-26 10 or 15 3.2/50 8/22 25/11 65/37 3500 380 2600
80 20 12-26 10 or 15 2.4/50 6/30 25/15 60/50 3700 450 2800
100 20 12-26 10 or 15 2.3/60 6/30 20/15 55/60 3900 450 2000

Type Limit of Main hook traverse
nearest to the center of
run way rails limit of lift of
hook below the top of runway rail(mm)		 End Carriage
Refererce(mm)		 Total number
of wheels
(Reference)		 Runway Rail
(Minimum)
(kg/m)

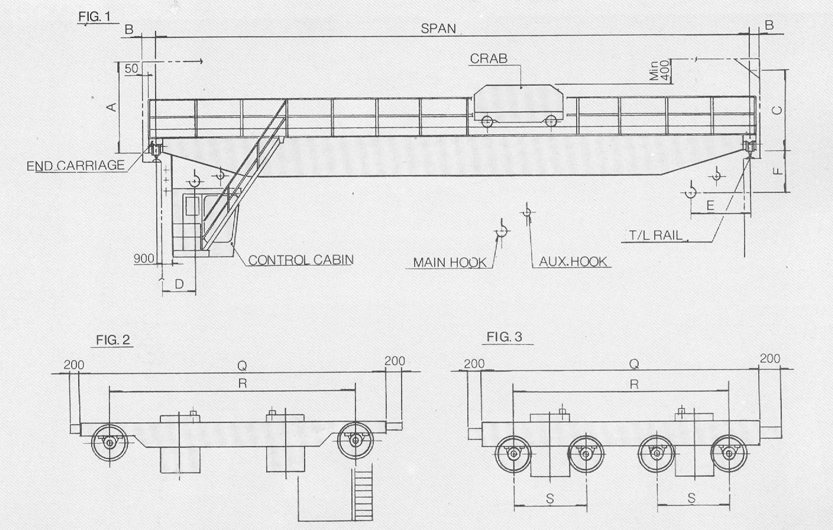

D E F Q R S
Medium
Speed
Type		 1000 1000 200 4050 3250 - 4 15
1100 1100 300 4400 3500 - 4 22
1200 1200 400 4400 3500   4 22
4900 4000
1300 1300 500 4900 4000   4 30
5400 4500
1500 1500
(1600)		 700 6000 5000 - 4 30
1800 1800
(1900)		 800 6000 5000 - 4 30
1900 2000 900 6350 5250 - 4 37
2000 2100 1000 6700 5500 - 4 37
2100 2200 1100 6700 5500 - 4 37
2200 2300 1200 7200 6000 - 4(74kg/mRail)
8(37kg/mRail)		 37
2300 2400 1300 6000 5000 - 8 37
2500 2600 1400 6500 5500 1200 8 74
2700 2800 1500 7200 6000 1300 8 74
