제품소개
와이어 호이스트

특징 및 개요 Fixed Hoist Without
Trolley		 Regular Hoist With Hand-Push
Trolley		 Regular Hoist With Motor-Driven
Trolley
Double Rail Hoist With Motor-Driven Trolley Double Rail Type Main&Aux Hoist Low Head Room Double Rail Hoist


LK Regular Hoist With Motor-Driven Trolley
다양한 모델의 LK 와이어 호이스트는 뛰어난 성능으로 작업환경에서 그 차이를 확인시킵니다.
Capacity(TON) 1 2 2.8 , 3 5
Model KAM-01 KAM-02 KBM-2.8, 03 KCM-05
Hoist Max.lift(m) 6, 9, 12 6, 9, 12 6, 9, 12 6, 9, 12
Hoisting
Speed
(m/min)		 High
Speed		 50(Hz) 7.0 7.0 5.6 4.4
60(Hz) 8.5 8.5 6.7 5.3
Low
Speed		 50(Hz) 4.7 4.7 3.7 2.9
60(Hz) 5.6 5.6 4.4 3.5
Dual
Speed		 50(Hz) 7.0 / 2.3 7.0 / 2.3 5.6 / 1.8 4.4 / 1.4
60(Hz) 8.5 / 2.8 8.5 / 2.8 6.7 / 2.2 5.3 / 1.7
Hoisting
Motor
(Kw x P)		 High Speed 2.4 x 4 4.5 x 4 4.5 x 4 5.6 x 4
Low Speed 1.6 x 6 3.0 x 6 3.0 x 6 4.0 x 6
Dual Speed 2.4 x 4 / 0.8 x 12 4.5 x 4 / 1.5 x 12 4.5 x 4 / 1.5 x 12 5.6 x 4 / 1.8 x 12
Wire rope Construction 6 x 37 19 x 7 06 x WS36 + IWRC 06 x WS36 + IWRC
Dia.(mm) x Reeving 9 x 2/1 9 x 2/1 11.2 x 2/1 14 x 2/1
Brake DC magnet disc brake
Traversing Traversing
Speed
(m/min)		 High
Speed		 50(Hz) 20 20 20 20
60(Hz) 24 24 24 24
Low
Speed		 50(Hz) 13 13 13 13
60(Hz) 16 16 16 16
Dual
Speed		 50(Hz) 20 / 6.7 20 / 6.7 20 / 6.7 20 / 6.7
60(Hz) 24 / 8 24 / 8 24 / 8 24 / 8
Traversing
motor
(kw x p)		 High Speed 0.4 x 4 0.4 x 4 0.75 x 4 0.75 x 4
Low Speed 0.3 x 6 0.3 x 6 0.5 x 6 0.5 x 6
Dual Speed 0.4 x 4 / 0.14 x 12 0.4 x 4 / 0.14 x 12 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12

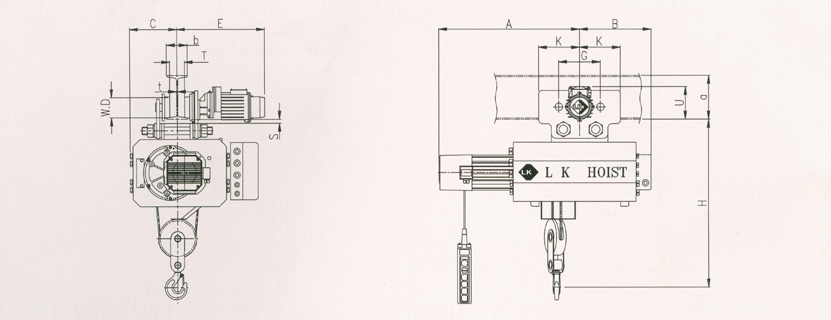

Dimensions
(approx.)(mm)		 H(min) 940 945 1100 1280
A 530, 607, 657 530, 607, 657 625, 660, 707 668, 712, 770
B 315, 365, 415 315, 365, 415 330, 387, 431 346, 391, 431
C 301 301 275 300
E 380 380 510 518
G 230 250 241.2 250
K 200 200 208 260
W.D(Wheel Dia) φ80 φ80 φ123 φ125
I-beam and
spacing(mm)		 a x b x t C E S T U C E S T U C E S T U C E S T U
200 x 100 x 7 301 380 25 50 128 301 380 25 50 128 264 498 42 43 189 - - - - -
250 x 125 x 7.5 314 392 24 75

128.5

 314 392 24 75 128.5 276 510 40 68 191 286 518 32 64 194
300 x 150 x 10 326 405 22 100 131 326 405 22 100 131 289 523 34 93 197 298 530 26 89 200
450 x 175 x 13 - - - - - - - - - - 301 535 26 118 205 310 543 18 114 208
Min. radius of curvature(m) 2.0 2.0 2.0 2.3
Weight(approx.)(kg) 150, 160, 170 190, 205, 220 330, 360, 390 440, 470, 500

양산부품의 공용화로 생산성 및 사후처리의 편리성은 소비자의 만족도를 높입니다.
Capacity(TON) 7.5 10 15 20
Model KCM-7.5 KCM-10 KDM-15 KDM-20
Hoist Max.lift(m) 12 12 12 12
Hoisting
Speed
(m/min)		 High
Speed		 50(Hz) 3.6 3.6 4.0 4.0
60(Hz) 4.3 4.3 4.8 4.8
Low
Speed		 50(Hz) 2.3 2.3 2.6 2.6
60(Hz) 2.8 2.8 3.1 3.1
Dual
Speed		 50(Hz) 3.6 / 1.2 3.6 / 1.2 4.0 / 1.3 4.0 / 1.3
60(Hz) 4.3 / 1.4 4.3 / 1.4 4.8 / 1.6 4.8 / 1.6
Hoisting
Motor
(Kw x P)		 High Speed 7.5 x 4 9 x 4 17 x 4 19 x 4
Low Speed 5 x 6 5.6 x 6 12 x 6 13 x 6
Dual Speed 7.5 x 4 / 2.5 x 12 9 x 4 / 3 x 12 17 x 4 / 5.6 x 12 19 x 4 / 7.5 x 12
Wire rope Construction 35 x 7 06 x WS36 + IWRC 06 x WS36 + IWRC 06 x WS36 + IWRC
Dia.(mm) x Reeving 12 x 4/2 14 x 4/2 18 x 4/2 20 x 4/2
Brake DC magnet disc brake
Traversing Traversing
Speed
(m/min)		 High
Speed		 50(Hz) 14 14 12.5 12.5
60(Hz) 16.8 16.8 15 15
Low
Speed		 50(Hz) 9.4 9.4 8.3 8.3
60(Hz) 11.2 11.2 10 10
Dual
Speed		 50(Hz) 14 / 4.7 14 / 4.7 12.5 / 4.2 12.5 / 4.2
60(Hz) 17 / 5.6 17 / 5.6 15 / 5 15 / 5
Traversing
motor
(kw x p)		 High Speed 0.75 x 4(2set) 0.75 x 4(2set) 1.5 x 4(2set) 1.5 x 4(2set)
Low Speed 0.5 x 6(2set) 0.5 x 6(2set) 1.0 x 6(2set) 1.0 x 6(2set)
Dual Speed 0.75 x 4 / 0.25 x 12(2set) 0.75 x 4 / 0.25 x 12(2set) 1.5 x 4 / 0.5 x 12(2set) 1.5 x 4 / 0.5 x 12(2set)

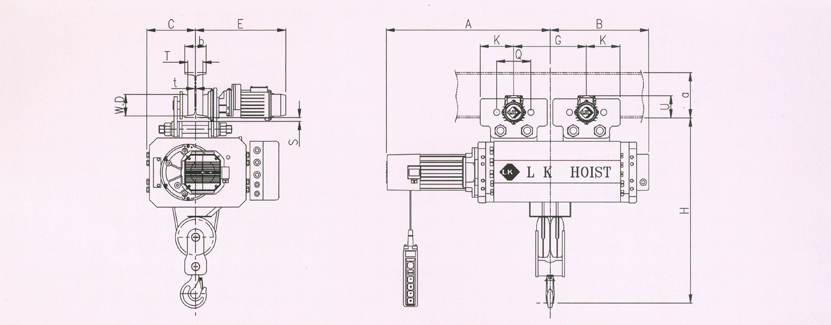

Dimensions
(approx.)(mm)		 H(min) 1400 1400 1875 1930
A 1100 1100 1250 1300
B 608 608 640 690
C 286 286 380 380
E 518 518 600 600
G 536 536 716 800
K 260 260 276 276
Q 250 250 315 315
W.D(Wheel Dia) φ125 φ125 φ180 φ180
I-beam and
spacing(mm)		 a x b x t C E S T U C E S T U C E S T U C E S T U
250 x 125 x 7.5 286 518 32 64 194 286 518 32 64 194 - - - - - - - - - -
300 x 150 x 10 298 530 26 89 200 298 530 26 89 200 560 295 26 52 224 560 295 26 52 224
450 x 175 x 13 310 543 18 114 208 310 543 18 114 208 585 320 20 77 228 585 320 20 77 228
600 x 190 x 13 - - - - - - - - - - 600 335 23 92 227 600 335 23 92 227
Min. radius of curvature(m) Straight line
Weight(approx.)(kg) 731 731 2010 2010
