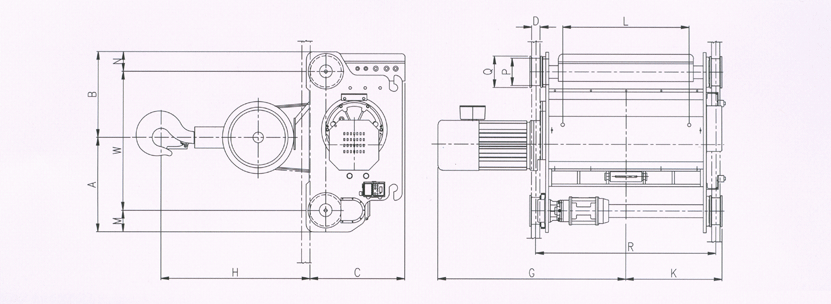

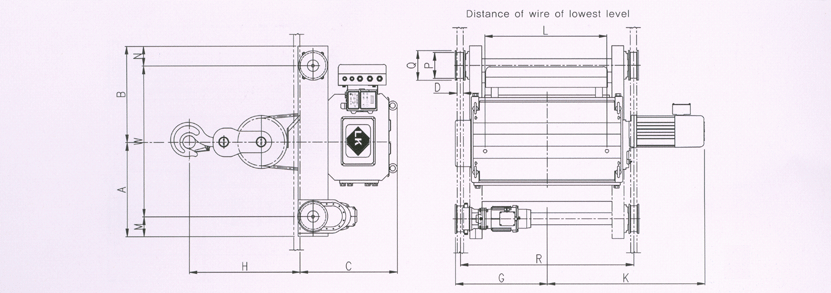

체인 호이스트(DA/DB Type)      체인 호이스트(LT Type)      와이어 호이스트      식품용 호이스트      무선 리모콘      윈치      트로리바      크레인 설치      새들 및 부품      대산 호이스트   제품소개 와이어 호이스트   특징 및 개요 Fixed Hoist Without Trolley Regular Hoist With Hand-Push Trolley Regular Hoist With Motor-Driven Trolley Double Rail Hoist With Motor-Driven Trolley Double Rail Type Main&Aux Hoist Low Head Room Double Rail Hoist     LK Double Rail Hoist With Motor-Driven Trolley 완벽한 안정성과 뛰어난 성능으로 거듭난 LK와이어 호이스트는 작업공정 자동화의 선두주자 입니다. Capacity(TON) 2 2.8, 3 5 7.5 10 Model KAD-02 KAD-2.8, 3 KBD-05 KCD-7.5 KCD-10 Hoist Max.lift(m) 9, 12 18 9 12 9, 12 12 12 Hoisting Speed (m/min) High Speed 50(Hz) 7.0 5.6 7.0 5.6 4.6 3.6 3.6 60(Hz) 8.5 6.7 9 6.7 5.5 4.3 4.3 Low Speed 50(Hz) 4.7 3.7 4.7 3.7 3.1 2.3 2.3 60(Hz) 5.6 4.4 6 4.4 3.7 2.8 2.8 Dual Speed 50(Hz) 7.0 / 2.3 5.6 / 1.8 7.0 / 2.3 5.6 / 1.8 4.6 / 1.5 3.6 / 1.2 3.6 / 1.2 60(Hz) 8.5 / 2.8 6.7 / 2.2 9 / 3 6.7 / 2.2 5.5 / 1.8 4.3 / 1.4 4.3 / 1.4 Hoisting Motor (Kw x P) High Speed 4.5 x 4 5.6 x 4 4.5 x 4 5.6 x 4 7.5 x 4 9 x 4 Low Speed 3.0 x 6 4.0 x 6 3.0 x 6 4.0 x 6 5.0 x 6 5.6 x 6 Dual Speed 4.5 x 4 / 1.5 x 12 5.6x4/1.8x12 4.5x4/1.5x12 5.6 x 4 / 1.8 x 12 7.5 x 4 / 2.5 x 12 9 x 4 / 3 x 12 Wire rope Construction 6 x 37 06 x WS36 + IWRC 6 x 37 06 x WS36 + IWRC 6 x 37 06 x WS36 + IWRC 06 x WS36 + IWRC Dia.(mm) x Reeving 8 x 4/2 9 x 4/2 11.2 x 4/2 12 x 4/2 14 x 4/2 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 20 20 20 20 14 60(Hz) 24 24 24 24 17 Low Speed 50(Hz) 13 13 13 13 9.5 60(Hz) 16 16 16 16 12 Dual Speed 50(Hz) 20 / 6.7 20 / 6.7 20 / 6.7 20 / 6.7 14 / 4.6 60(Hz) 24 / 8 24 / 8 24 / 8 24 / 8 17 / 5.8 Traversing motor (kw x p) High Speed 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4 Low Speed 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6 Dual Speed 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12 Dimensions (approx.)(mm) H(min) 445 445 570 / 570 750 805 R 950 950 1150 1150 1150 A 482 482 482 482 482 597 597 B 433 433 433 433 521 523 523 C 510 520 510 520 533 645 645 G 510 510 510 510 608 608 608 K 895 895 895 895 974 / 1008 1055 1055 W 680 680 771 860 860 D 47 47 47 47 47 L 554 716 607 716 909 874 874 M 120 120 118 130 130 N 115 115 114 130 130 P φ110 φ110 φ110 φ170 φ170 Q φ126 φ126 φ126 φ194 φ194 Weight(approx.)(kg) 385 427 385 427 600, 600 900 950 Rail 15 15 15 15 15   K-시리즈 전용 고효율의 권상모터 - 당사에서 K-시리즈 와이어 호이스트 전용으로 개발한 고효율의 전용모터는 강력한 힘으로 뛰어난 기동력 및 내구성을 보장합니다. Capacity(TON) 15 20 30 Model KDD-15 KDD-20 KDD-30 Hoist Max.lift(m) 12 12 12 Hoisting Speed (m/min) High Speed 50(Hz) 4.0 4.0 2.6 60(Hz) 4.8 4.8 3.2 Low Speed 50(Hz) 2.6 2.6 1.7 60(Hz) 3.2 3.2 2.2 Dual Speed 50(Hz) 4.0 / 1.3 4.0 / 1.3 2.7 / 0.9 60(Hz) 4.8 / 1.6 4.8 / 1.6 3.2 / 1.0 Hoisting Motor (Kw x P) High Speed 17 x 4 19 x 4 19 x 4 Low Speed 12 x 6 13 x 6 13 x 6 Dual Speed 17 x 4 / 5.6 x 12 19 x 4 / 7.5 x 12 19 x 4 / 7.5 x 12 Wire rope Construction 06 x WS36 + IWRC 06 x WS36 + IWRC 06 x WS36 + IWRC Dia.(mm) x Reeving 18 x 4/2 20 x 4/2 20 x 6/2 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 12.5 12.5 12.5 60(Hz) 15 15 15 Low Speed 50(Hz) 8.3 8.3 8.3 60(Hz) 10 10 10 Dual Speed 50(Hz) 12.5 / 4.2 12.5 / 4.2 12.5 / 4.2 60(Hz) 15 / 5 15 / 5 15 / 5 Traversing motor (kw x p) High Speed 1.5 x 4 1.5 x 4 1.5 x 4(2set) Low Speed 1.0 x 6 1.0 x 6 1.0 x 6(2set) Dual Speed 1.5 x 4 / 0.5 x 12 1.5 x 4 / 0.5 x 12 1.5 x 4 / 0.5 x 12(2set) Dimensions (approx.)(mm) H(min) 960 1190 1450 R 1200 1300 1800 A 622.5 630 910 B 567.5 585 890 C 630 650 770 G 1250 1280 1542 K 642 692 986 W 920 920 1460 D 58 58 70 L 874 955 1440 M 144 150 180 N 130 145 160 P φ180 φ220 φ250 Q φ208 φ248 φ280 Weight(approx.)(kg) 1650 2120 3200 Rail(kg/m) 22 22 30
