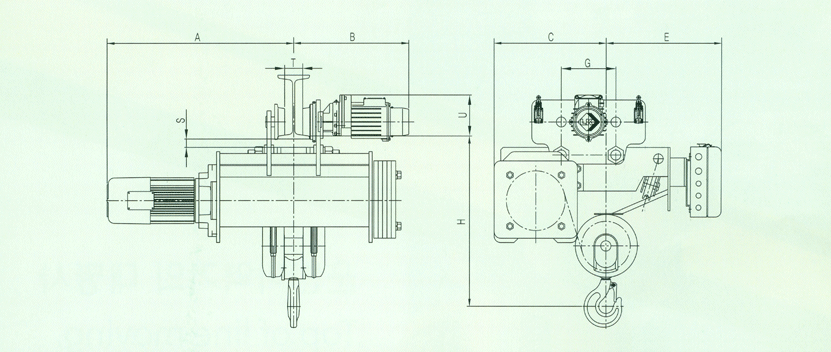

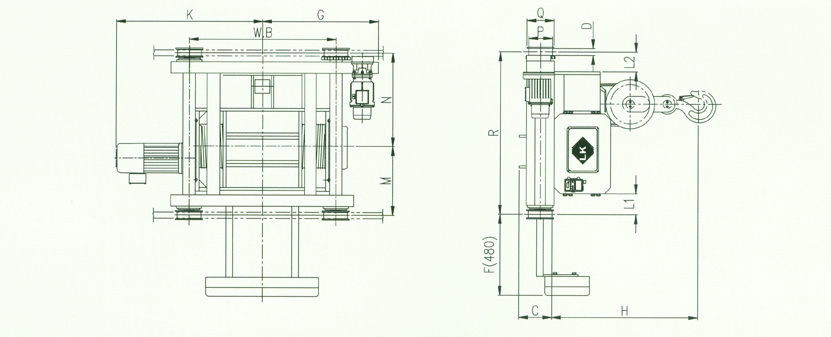

체인 호이스트(DA/DB Type)      체인 호이스트(LT Type)      와이어 호이스트      식품용 호이스트      무선 리모콘      윈치      트로리바      크레인 설치      새들 및 부품      대산 호이스트   제품소개 와이어 호이스트   특징 및 개요 Fixed Hoist Without Trolley Regular Hoist With Hand-Push Trolley Regular Hoist With Motor-Driven Trolley Double Rail Hoist With Motor-Driven Trolley Double Rail Type Main&Aux Hoist Low Head Room Double Rail Hoist     LK Low Head Room Double Rail Hoist 건축 설계시 SH Type의 적용을 기본으로 설계할 경우 건축물의 높이를 보다 더 낮출 수 있어 경비절감 효과를 볼 수 있습니다. Capacity(TON) 2TON 2.8TON 5TON 7.5TON 10TON Type Hoisting KASF-02T KASF-2.8T KBSF-05T KCSF-7.5T KCSF-10T Hoist Max.lift(m) 9 9 9 12 12 Hoisting Speed (m/min) High Speed 50(Hz) 7 7 4.6 3.6 3.6 60(Hz) 8.5 8.5 5.5 4.3 4.3 Low Speed 50(Hz) 4.7 4.7 3.1 2.4 2.4 60(Hz) 5.6 5.6 3.7 2.8 2.8 Dual Speed 50(Hz) 7 / 2.3 7 / 2.3 4.6 / 1.5 3.6 / 1.2 3.6 / 1.2 60(Hz) 8.5 / 2.8 8.5 / 2.8 5.5 / 1.8 4.3 / 1.4 4.3 / 1.4 Hoisting Motor (Kw x P) High Speed 4.5 x 4 4.5 x 4 5.6 x 4 7.5 x 4 9 x 4 Low Speed 3.0 x 6 3.0 x 6 4 x 6 5 x 6 5.6 x 6 Dual Speed 4.5x4/1.5x12 4.5x4/1.5x12 5.6x4/1.8x12 7.5x4/2.5x12 9x4/3x12 Wire rope Construction 6 x 36 6xWS36+IWRC 6 x 37 6xWS36+IWRC 6 x 37 6xWS36+IWRC 6xWS36+IWRC Dia.(mm) x no.of rope 8 x 4/2 9 x 4/2 11.2 x 4 12 x 4 14 x 4 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 20 20 20 14 14 60(Hz) 24 24 17.2 17 17 Low Speed 50(Hz) 13 13 13 9.5 9.5 60(Hz) 16 16 11.7 12 12 Dual Speed 50(Hz) 20 / 6.7 20 / 6.7 20 / 6.7 14 / 4.2 14 / 4.2 60(Hz) 24 / 8 24 / 8 24 / 8 17 / 5.8 17 / 5.8 Traversing motor (kw x p) High Speed 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4 Low Speed 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6 Dual Speed 0.75 x 4 / 0.25 x 12 Dimensions (approx.)(mm) H(min) 550 550 800 980 1050 R 950 950 1150 1150 1150 C 190 190 250 250 250 G 565 565 685 845 845 K 845 845 945 1055 1055 F 480 480 480 480 480 W.D 650 650 770 1050 1050 D 47 47 47 47 47 Q φ169 φ169 φ126 φ194 φ194 P φ150 φ150 φ110 φ170 φ170 L1 130 130 150 140 140 L2 110 110 150 140 140 M 373 373 422 422 422 N 577 577 728 728 728 Weight(approx.)(kg) 450 480 690 950 950 Rail(kg/m) 15kg/m 15kg/m 15kg/m 15kg/m 15kg/m   Capacity(TON) 1 2 2.8, 3 5 Model KALM-01 KALM-02 KALM-2.8, 03 KBLM-05 Hoist Max.lift(m) 6, 12 6, 12 6, 12 6, 12 Hoisting Speed (m/min) High Speed 50(Hz) 7.0 7.0 7.0 4.6 60(Hz) 8.5 8.5 8.5 5.5 Low Speed 50(Hz) 4.7 4.7 4.7 3.1 60(Hz) 5.6 5.6 5.6 3.7 Dual Speed 50(Hz) 7 / 2.3 7 / 2.3 7 / 2.3 4.6 / 1.5 60(Hz) 8.5 / 2.8 8.5 / 2.8 8.5 / 2.8 5.5 / 1.8 Hoisting Motor (Kw x P) High Speed 2.4 x 4 4.5 x 4 5.6 x 4 5.6 x 4 Low Speed 1.6 x 6 3.0 x 6 4.0 x 6 4.0 x 6 Dual Speed 2.4x4/0.8x12 4.5x4/1.5x12 5.6x4/1.8x12 5.6x4/1.8x12 Wire rope Construction 6 x 37 6 x 37 6xWS36+IWRC 6 x 37 6xWS36+IWRC 6 x 37 Dia.(mm) x no.of rope 8 x 4/2 8 x 4/2 9 x 4/2 11.2 x 4/2 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 20 20 20 20 60(Hz) 24 24 24 24 Low Speed 50(Hz) 13 13 13 13 60(Hz) 16 16 16 16 Dual Speed 50(Hz) 20 / 6.7 20 / 6.7 20 / 6.7 20 / 6.7 60(Hz) 24 / 8 24 / 8 24 / 8 24 / 8 Traversing motor (kw x p) High Speed 0.4 x 4 0.4 x 4 0.75 x 4 0.75 x 4 Low Speed 0.3 x 6 0.3 x 6 0.5 x 6 0.5 x 6 Dual Speed 0.4x4/0.14x12 0.4x4/0.14x12 0.75x4/0.25x12 0.75x4/0.25x12 Dimensions (approx.)(mm) H(min) 660 660 705 770 A 741, 954 741, 954 760, 990 850, 1032 B 465, 727 465, 727 484, 764 510, 692 C 301 400 400 500 E 380 470 470 512 G 230 230 241.2 250           W.D(Wheel Dia) 80 80 123 125 I-beam and spacing(mm) a x b x t S T U S T U S T U S T U 200 x 100 x 7 25 50 128 25 50 128 42 42 189 - - - 250 x 125 x 7.5 24 75 128.5 24 75 128.5 40 68 191 42 64 194 300 x 150 x 10 22 100 131 22 100 131 34 93 197 36 89 200 450 x 175 x 13 - - - - - - 26 118 205 25 114 208 Min. radius of curvature(m) 1.8 1.8 1.8 2.3 Weight(approx.)(kg) 300, 350 330, 390 340, 400 540, 600
