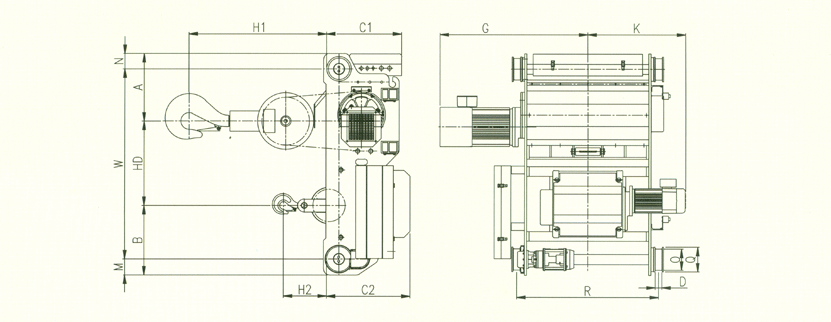

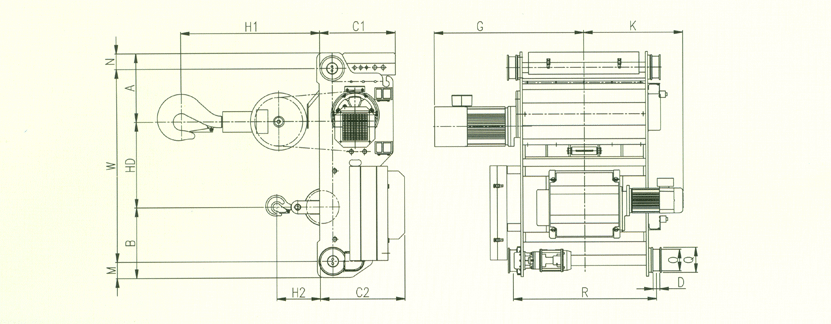

체인 호이스트(DA/DB Type)      체인 호이스트(LT Type)      와이어 호이스트      식품용 호이스트      무선 리모콘      윈치      트로리바      크레인 설치      새들 및 부품      대산 호이스트   제품소개 와이어 호이스트   특징 및 개요 Fixed Hoist Without Trolley Regular Hoist With Hand-Push Trolley Regular Hoist With Motor-Driven Trolley Double Rail Hoist With Motor-Driven Trolley Double Rail Type Main&Aux Hoist Low Head Room Double Rail Hoist     LK Double Rail Type Main & Aux Hoist 완벽한 안정성과 뛰어난 성능으로 그 진가를 확인시킵니다. Capacity(TON) KC-7.5T-KB-03T KC-10T-KB-03T KC-10T-KC-05T Type Hoisting 7.5TON / 3TON 10TON / 3TON 10TON / 5TON Hoist Max.lift(m) 12 12 12 Hoisting Speed (m/min) High Speed 50(Hz) 3.6 5.5 3.6 5.5 3.6 4.4 60(Hz) 4.3 6.7 4.3 6.7 4.3 5.3 Low Speed 50(Hz) 2.3 3.7 2.3 3.7 2.3 2.9 60(Hz) 2.8 4.4 2.8 4.4 2.8 3.5 Dual Speed 50(Hz) 3.6 / 1.2 5.5 / 1.7 3.6 / 1.2 5.5 / 1.7 3.6 / 1.2 4.4 / 1.4 60(Hz) 4.3 / 1.4 6.7 / 2.2 4.3 / 1.4 6.7 / 2.2 4.3 / 1.4 5.3 / 1.7 Hoisting Motor (Kw x P) High Speed 7.5 x 4 4.5 x 4 9 x 4 4.5 x 4 9 x 4 5.6 x 4 Low Speed 5.0 x 6 3.0 x 6 5.6 x 6 3.0 x 6 5.6 x 6 4.0 x 6 Dual Speed 7.5 x 4 / 2.5 x 12 4.5 x 4 / 1.5 x 12 9 x 4 / 3 x 12 4.5 x 4 / 1.5 x 12 9 x 4 / 3 x 12 5.6 x 4 / 1.8 x 12 Wire rope Construction 06 x WS36 + IWRC 06 x WS36 + IWRC 06 x WS36 + IWRC 06 x WS36 + IWRC 06 x WS36 + IWRC 06 x WS36 + IWRC Dia.(mm) x Reeving 12 x 4/2 11.2 x 2/1 14 x 4/2 11.2 x 2/1 14 x 4/2 14 x 2/1 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 14 14 14 60(Hz) 17 17 17 Low Speed 50(Hz) 9.5 9.5 9.5 60(Hz) 12 12 12 Dual Speed 50(Hz) 14 / 4.2 14 / 4.2 14 / 4.2 60(Hz) 17 / 5.8 17 / 5.8 17 / 5.8 Traversing motor (kw x p) High Speed 0.75 x 4 0.75 x 4 0.75 x 4 Low Speed 0.5 x 6 0.5 x 6 0.5 x 6 Dual Speed 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12 0.75 x 4 / 0.25 x 12 Dimensions (approx.)(mm) H1(min) 750 805 805 H2(min) 450 450 575 R 1150 1150 1150 HD 614 614 632 A 498 498 498 B 598 598 580 C1 645 645 645 C2 570 570 645 G 1055(1095) 1055(1095) 1055(1095) K 770(820) 770(820) 770(820) W 1450 1450 1450 D 47 47 47 M 130 130 130 N 130 130 130 P φ170 φ170 φ170 Q φ194 φ194 φ194 Weight(approx.)(kg) 1140 1140 1270 Rail(kg/m) 15kg/m 15kg/m 15kg/m   안전성이 요구되는 운반물이나 화물용 리프트의 적용에 최적의 기종입니다. Capacity(TON) 15TON / 3TON 15TON / 5TON 20TON / 3TON Type Hoisting KD15T / KB03T KD15T / KC05T KD20T / KB03T Hoist Max.lift(m) 12 12 12 Hoisting Speed (m/min) High Speed 50(Hz) 4.0 5.6 4.0 4.4 4.0 5.6 60(Hz) 4.8 6.7 4.8 5.3 4.8 6.7 Low Speed 50(Hz) 2.6 3.7 2.6 2.9 2.6 3.7 60(Hz) 3.2 4.4 3.2 3.5 3.2 4.4 Dual Speed 50(Hz) 4.0 / 1.3 5.6 / 1.9 4.0 / 1.3 4.4 / 1.4 4.0 / 1.3 5.6 / 1.9 60(Hz) 4.8 / 1.6 6.7 / 2.2 4.8 / 1.6 5.3 / 1.7 4.8 / 1.6 6.7 / 2.2 Hoisting Motor (Kw x P) High Speed 17 x 4 4.5 x 4 17 x 4 5.6 x 4 19 x 4 4.5 x 4 Low Speed 12 x 6 3.0 x 6 12 x 6 4.0 x 6 13 x 6 3.0 x 6 Dual Speed 17x4/5.6x12 4.5x4/1.5x12 17x4/5.6x12 5.6x4/1.8x12 19x4/7.5x12 5.6x4/1.8x12 Wire rope Construction 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC Dia.(mm) x Reeving 18 x 4/2 11.2 x 2/1 18 x 4/2 14 x 2/1 20 x 4/2 11.2 x 2/1 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 12.5 12.5 12.5 60(Hz) 15 15 15 Low Speed 50(Hz) 8.3 8.3 8.3 60(Hz) 10 10 10 Dual Speed 50(Hz) 12.5 / 4.2 12.5 / 4.2 12.5 / 4.2 60(Hz) 15 / 5 15 / 5 15 / 5 Traversing motor (kw x p) High Speed 1.5 x 4 1.5 x 4 1.5 x 4 Low Speed 1.0 x 6 1.0 x 6 1.0 x 6 Dual Speed 1.5 x 4 / 0.5 x 12 1.5 x 4 / 0.5 x 12 1.5 x 4 / 0.5 x 12 Dimensions (approx.)(mm) H1(min) 960 960 1190 H2(min) 350 380 330 R 1200 1200 1300 HD 710 710 710 A 585 585 600 B 565 565 570 C1 635 635 655 C2 655 655 675 G 1250 1250 1300 K 828 765 828 W 1600 1600 1600 D 58 58 58 M 130 130 145 N 130 130 145 P 180 180 220 Q 208 208 248 Weight(approx.)(kg) 2200 2250 2300 Rail(kg/m) 22kg/m 22kg/m 22kg/m   저가격 고품질 실현으로 소비자 만족도를 높입니다. Capacity(TON) 20TON / 5TON 30TON / 5TON 30TON / 10TON Type Hoisting KD20T / KC05T KD30T / KC05T KD30T / KC10T Hoist Max.lift(m) 12 12 12 Hoisting Speed (m/min) High Speed 50(Hz) 4.0 4.4 2.6 4.4 2.6 3.6 60(Hz) 4.8 5.3 3.2 5.3 3.2 4.3 Low Speed 50(Hz) 2.6 2.9 1.7 2.9 1.7 2.3 60(Hz) 3.2 3.5 2.2 3.5 2.2 2.8 Dual Speed 50(Hz) 4.0 / 1.3 4.4 / 1.4 2.7 / 0.9 4.4 / 1.4 2.7 / 0.9 3.6 / 1.2 60(Hz) 4.8 / 1.6 5.3 / 1.7 3.2 / 1.0 5.3 / 1.7 3.2 / 1.0 4.3 / 1.4 Hoisting Motor (Kw x P) High Speed 19 x 4 5.6 x 4 19 x 4 5.6 x 4 19 x 4 9 x 4 Low Speed 13 x 6 4.0 x 6 13 x 6 4.0 x 6 13 x 6 5.6 x 6 Dual Speed 19x4/7.5x12 5.6x4/1.8x23 19x4/7.5x12 5.6x4/1.8x23 19x4/7.5x12 9x4/3x12 Wire rope Construction 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC 6xWS36+IWRC Dia.(mm) x Reeving 20 x 4/2 14 x 2/1 20 x 6/2 14 x 2/1 20 x 6/2 14 x 4/2 Brake DC magnet disc brake Traversing Traversing Speed (m/min) High Speed 50(Hz) 12.5 12.5 12.5 60(Hz) 15 15 15 Low Speed 50(Hz) 8.3 8.3 8.3 60(Hz) 10 10 10 Dual Speed 50(Hz) 12.5 / 4.2 12.5 / 4.2 12.5 / 4.2 60(Hz) 15 / 5 15 / 5 15 / 5 Traversing motor (kw x p) High Speed 1.5 x 4 1.5 x 4 1.5 x 4 Low Speed 1.0 x 6 1.0 x 6 1.0 x 6 Dual Speed 1.5 x 4 / 0.5 x 12 1.5 x 4 / 0.5 x 12 1.5 x 4 / 0.5 x 12 Dimensions (approx.)(mm) H1(min) 1125 1480 1480 H2(min) 360 360 440 R 1300 1800 1800 HD 710 990 990 A 600 890 890 B 570 717 717 C1 655 747 747 C2 675 750 750 G 1300 1547 1547 K 765 986 1084 W 1600 2260 2260 D 58 70 70 M 145 180 180 N 145 160 160 O φ220 φ250 φ250 Q φ248 φ280 φ280 Weight(approx.)(kg) 2350 3850 4000 Rail(kg/m) 22kg/m 30kg/m 30kg/m
